DR • Del Medical

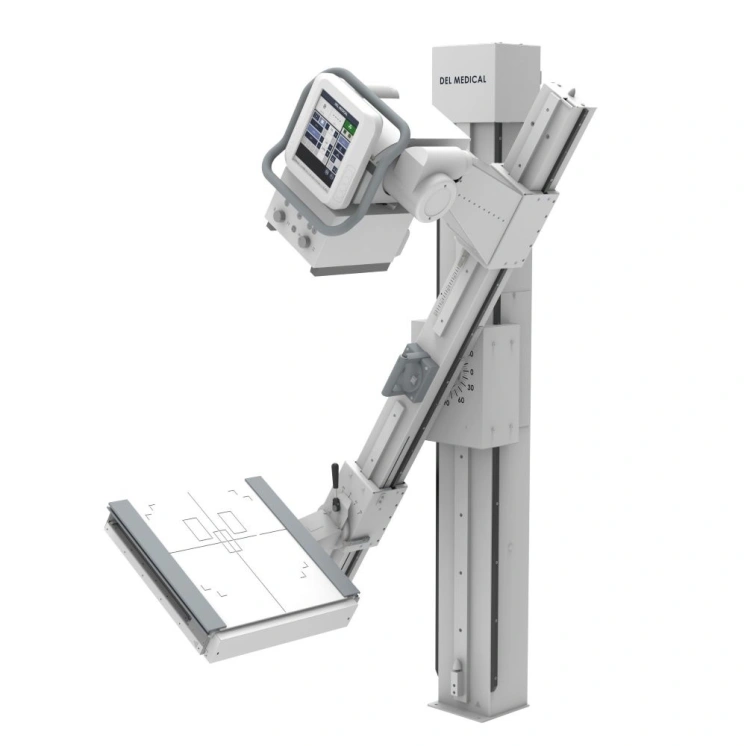

Straight Arm

• Economical and space-efficient X-ray system with manually controlled swivel arm
• Extensive range of arm and image receptor rotation for ultimate flexibility
• Isocentered design keeps the detector and X-ray beam in constant alignment
• Motorized variable SID adjustment of 100-200 cm (39-79 in) and extensive vertical travel of 43-163 cm (17-64 in)
• Optional mobile patient table for recumbent positioning with a 227 kg (500 lb) patient weight limit
  1. Fixed height or elevating
  2. Fixed or four-way floating tabletop
• Flat-panel detector options:
  1. E14Cw2: 35x43 cm (14x17 in) wireless glass-free Cesium, IP67 rating
  2. E17Cw2: 43x43 cm (17x17 in) wireless glass-free Cesium, IP67 rating
  3. E17C: 43x43 cm (17x17 in) fixed Cesium
