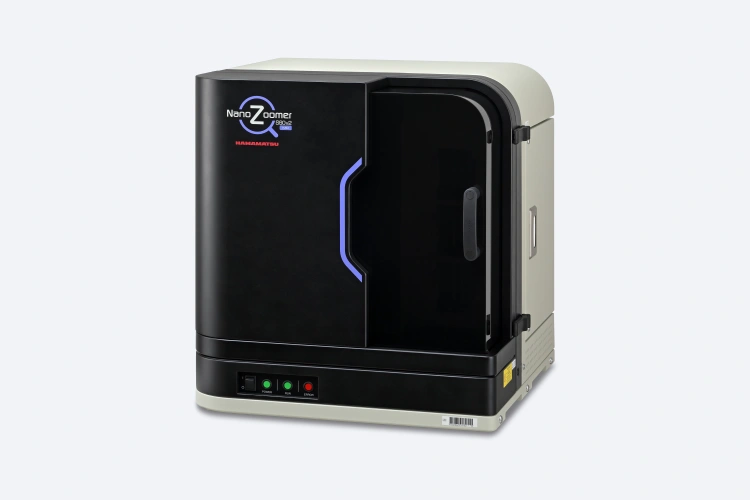

NanoZoomer® S60v2MD Slide scanner system
Scan speed: 60s @ 20x / 75s @ 40x
Capacity: 60 slides/30 megaslides
Resolution: 0.46/0.23 µm/px
NanoZoomer® S60v2MD Slide scanner system C16600-21MDEU
The system allows to make whole slide imaging for in vitro diagnostic use.
It can scan both standard and mega-sized slides in one batch.
The NanoZoomer S60v2MD for EU is an IVDR, UK MDR2002 and IvDO compliant model ideal for use in hospitals and clinical laboratories.
- Scan speed: 20× mode approx. 60s/40x mode approx. 75s (scan area 15x15mm)
- Capacity: 60 slides/30 megaslides
- Resolution: 0.46 μm/pixel with 20x objective/ 0.23μm/pixel with 40x objective
